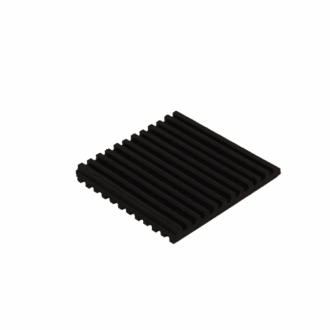

The DiversiTech rubber anti-vibration pad is designed to reduce vibration and noise emanating from refrigeration and air conditioning equipment. The rubber pad is corrugated on both sides to reduce vibration and noise as well as “walking” or “creep” associated with vibration.
FEATURES:
- The top and bottom ribs are 90 degrees opposed to one another providing a natural resistance to “creep” or “walking” associated with vibrations
- Ideal for air conditioners, refrigeration equipment, compressors, cooling towers, presses, machines or anywhere vibration control is needed.
- Designed to withstand loads of 50 psi
- Can be used indoors or outdoors
- Solid rubber construction
- Corrugated on both sides
- Pads can be stacked using interlocking ribs if additional vibration absorption or height is desired.
- The 18 in. x 18 in. sheet can be cut to meet any application size requirements
- Other size options available from 2 in. x 2 in. to 18 in. x 18 in.
OPTIONS:
- DT-MP-18 : CTN-6
- DT-MP-2 : CTN-48
- DT-MP-6: CTN-24
- DT-MP-3 : CTN-36
- DT-MP-12 : CTN-12
- DT-MP-4: CTN-24
- DT-MP-8: CTN-12
SPECIFICATIONS:
| DT-MP-18 | Anti-Vibration Pad, Rubber, (18x18x3/8) |
| DT-MP-2 | Anti-Vibration Pad,Rubber, (2×2,3/8) |
| DT-MP-3 | Anti-Vibration Pad, Rubber, (3x3x3/8) |
| DT-MP-6 | Anti-Vibration Pad, Rubber, (6x6x3/8) |
| DT-MP-12 | Anti-Vibration Pad, Rubber, (12x12x7/8) |
| DT-MP-4 | Anti-Vibration Pad, Rubber, (4x4x3/8) |
| DT-MP-8 | Anti-Vibration Pad, Rubber, (8x8x3/8) |
