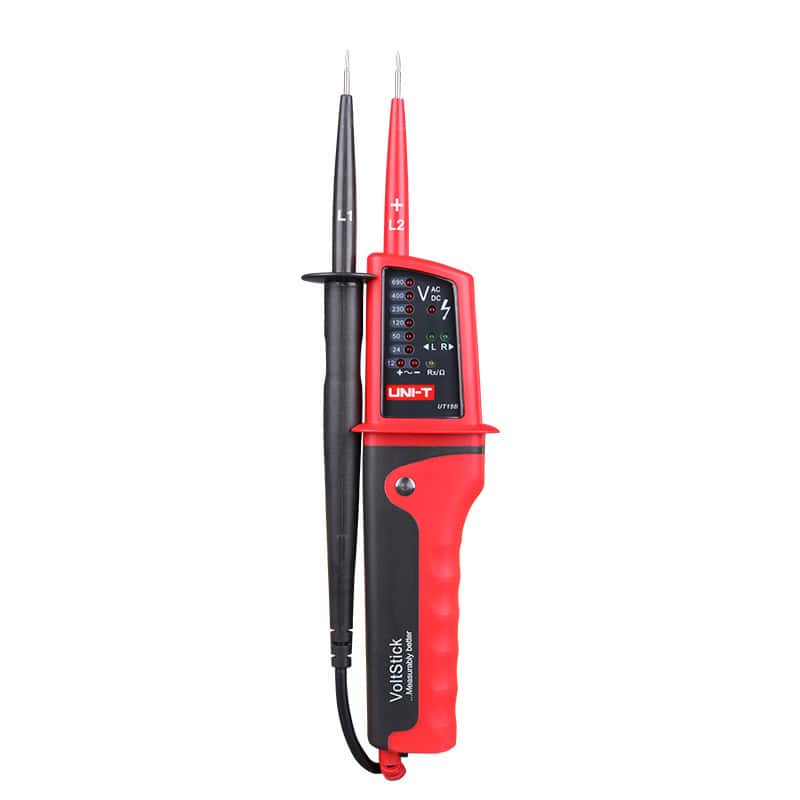

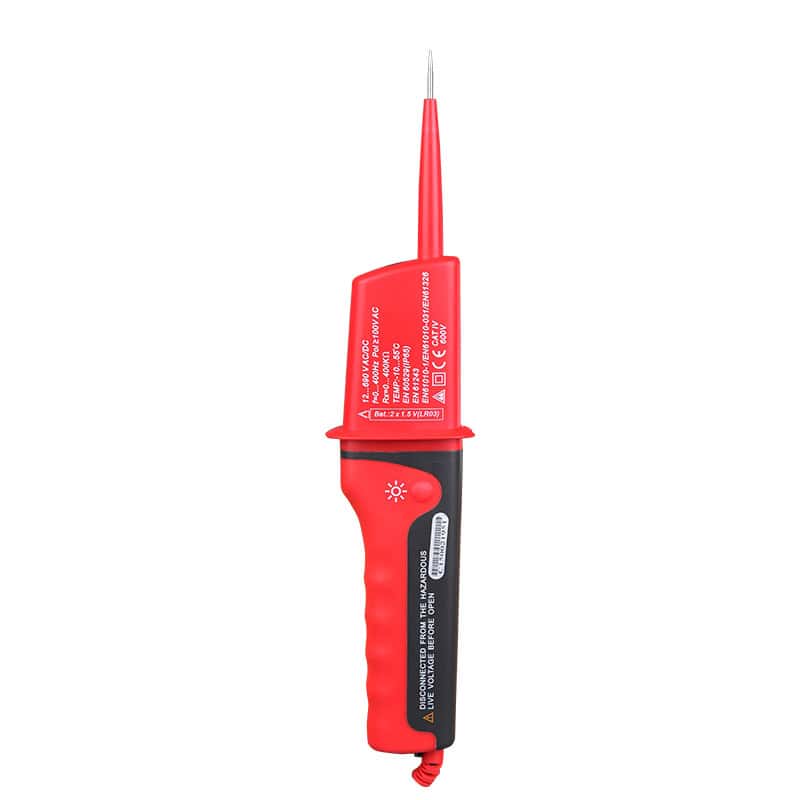

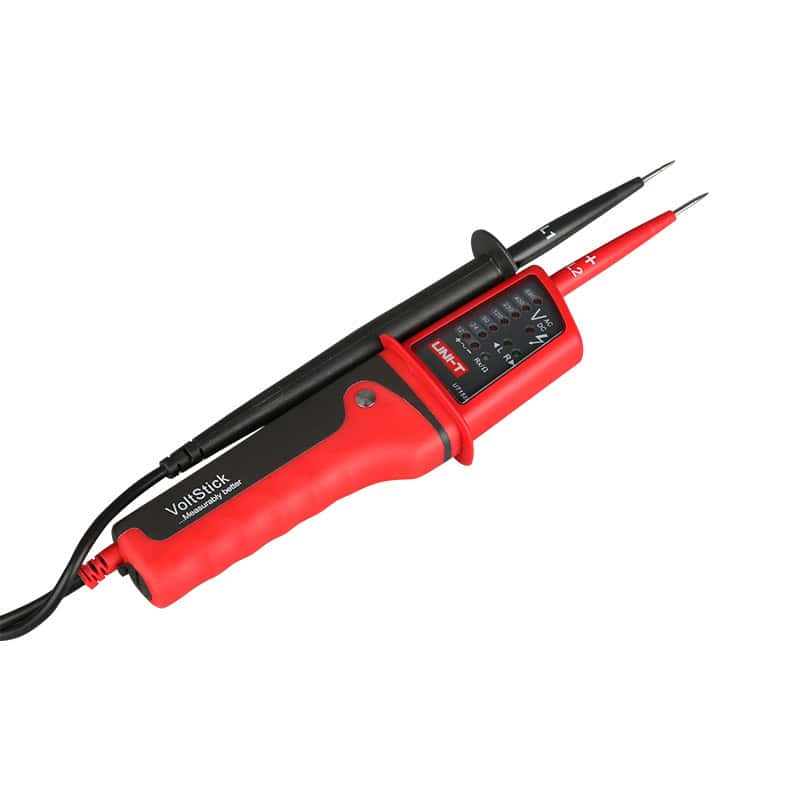

The UT15C test pen has the functions: AC/DC voltage measurement (include three-phase AC), phase position indication of three-phase AC, continuity test and single probe measurement (judge null wire or live wire). It can also solve the complex problems of electric, factory automation, etc.
FEATURES:
β AC/DC voltage measurement
β Continuity test
β Single probe measurement
β Phase position indication of three-phase AC
INCLUDES:
1 x UT15C, English manual, batteries, 12-month warranty
SPECIFICATIONS:
| Specifications | Range | UT15C |
LED AC/DC voltage indication (V) | 12V | 0~12V |
| 24V | 17VΒ±2V | |
| 50V | 35VΒ±5V | |
| 120V | 80VΒ±15V | |
| 230V | 165VΒ±20V | |
| 400V | 300VΒ±30V | |
| 690V | 510VΒ±40V | |
Phase rotation test | Operating Voltage: 0V~690V | β |
| Frequency: 50Hz~60Hz | ||
Single lead (L2) voltage detection | Operating Voltage: 0V~690V | β |
| Frequency: 50Hz~400Hz | ||
Continuity test | Resistance: 0~100kΞ© | β |
| Beeper and LED light Indicator | ||
| Polarity detection | Positive & Negative | β |
| Features | ||
Water-proof (IP65) | β | |
| Auto range | β | |
| Work light | β | |
| Low battery indication | Short circuit two leads, LED and beeper off when the bettery is low | β |
| LCD AC/DC voltage display | 24V~690V | Β±(3%+5) |
| General Characteristics | ||
| Power | 1.5V battery (R03) Γ 2 | |
| Display | UT15C- 23mm Γ 12mm | |
| Product color | Red and grey | |
| Product net weight | 210g | |
| Product size (W x H x D) | 275mm Γ 51mm Γ 30mm | |
| Standard accessories | Batteries | |
| Standard individual packing | Blister, English manual | |
| Standard quantity per carton | 30 pcs | |
| Standard carton measurement | 440mm Γ 395mm Γ 455mm (0.079CBM Per standard carton) | |
| Standard carton gross weight | 17kg | |
