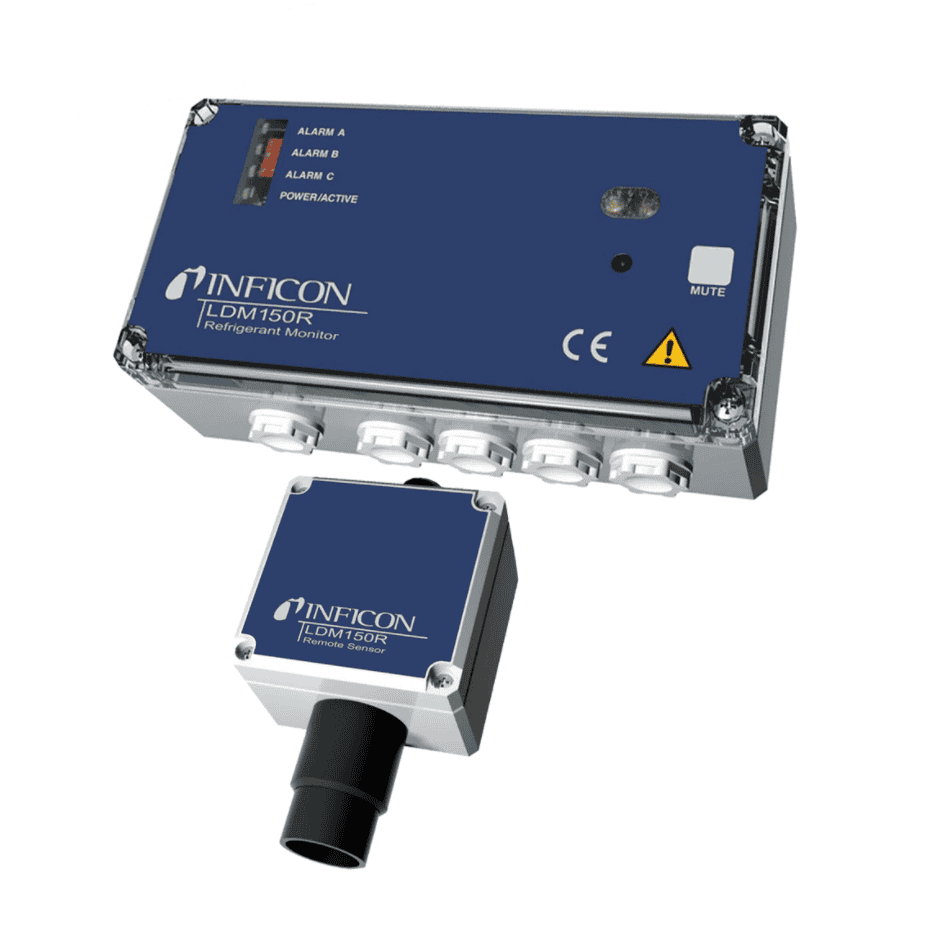

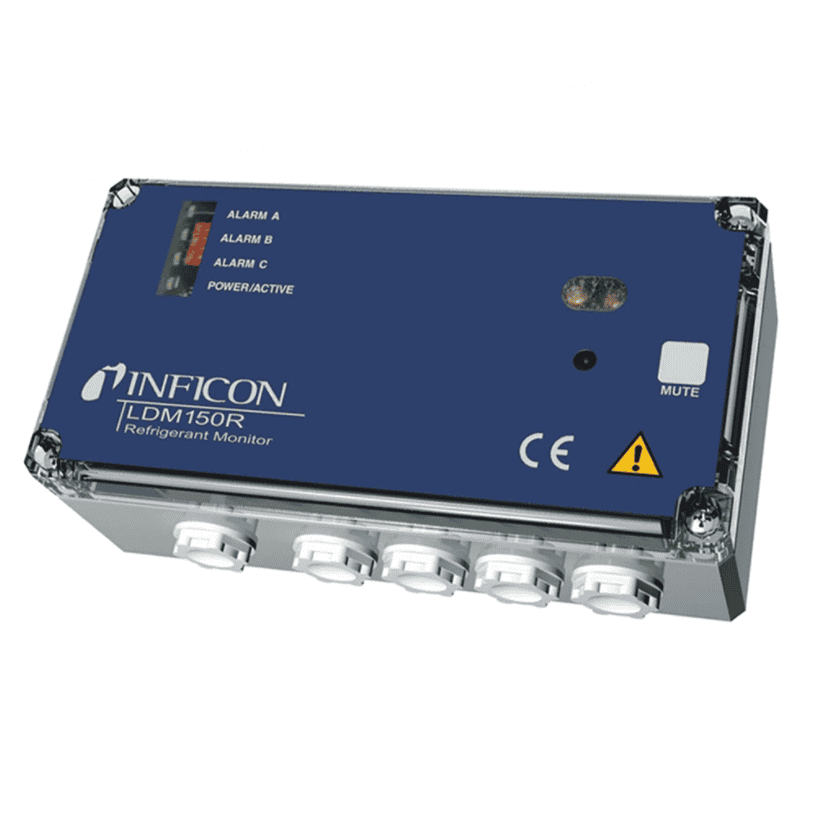

Inficon LDM150R Remote Refrigerant Monitors

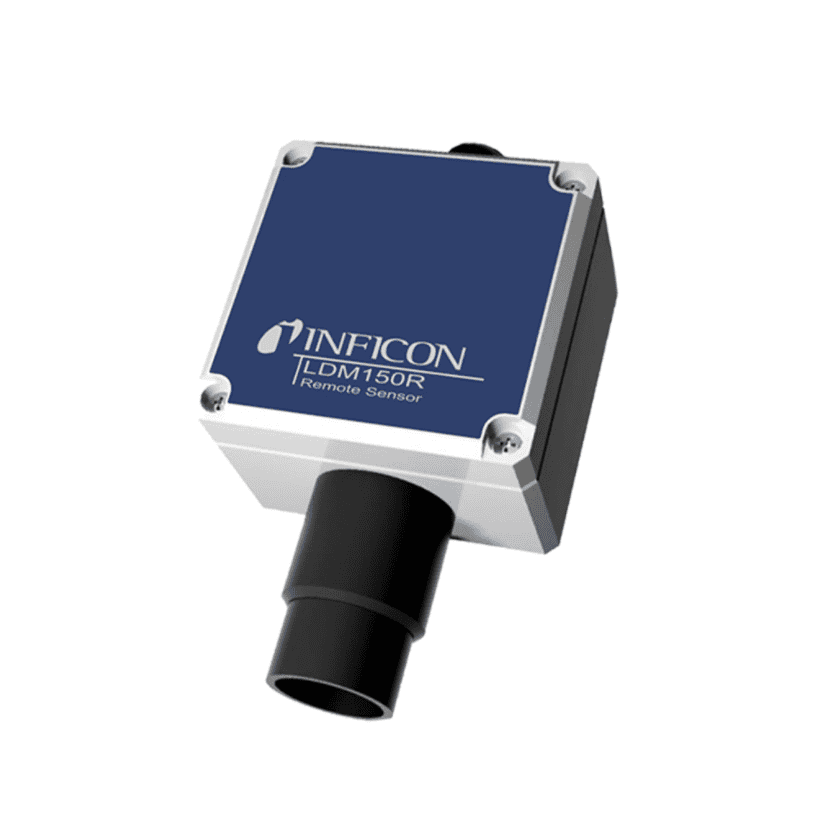

LDM150R uses a remote sensor for applications where the sensor should be installed separately from the monitor.

Suitable for Standard AS/NZS 5149 requirements.

$1,599.99$2,499.99 + GST

Clear
Everyday Low Trade Price
Free Delivery Within New Zealand*
30 Day Hassle Free Returns

LDM150R is a simple, reliable and safe solution for standalone constant monitoring of ANY refrigerant gas. These monitors are a true “plug and play” option! See how these monitors fit any application.

Suitable for Standard AS/NZS 5149 requirements. All models have a lead time of 28-35 days.

FEATURES:

  • Remote and integrated sensor options
  • Low maintenance, single-point calibrations
  • Easy field service
  • Three adjustable alarm setpoints
  • Low or high voltage operation
  • Three relay outputs tie to any system or device
  • Designed for any size application
  • Factory calibrated
  • Detects all CFCs, HFCs, HFOs, HCFCs, CFCs, HCs, CO2, and NH3.

OPTIONS / SKU:

INF-743-203-HFC
INF-743-203-CO2
INF-743-203-NH3
INF-743-203-R290

24-Month Warranty. All models have a lead time of 28-35 days.

SPECIFICATIONS:

TypeLDM150LDM150RLDM150R (R290)LDM150 and LDM150R
Compatible refrigerants743-202-HFC: R22, R32, R134a, R404a, R407c, R410a, R422b, R448a, R449a, R452a, R452b, R454b, R507 (AZ50), R1234yf, and more

743-202-CO2: CO(carbon dioxide)

743-202-NH3: NH3 (ammonia)

Alarm indicationThree alarm levels with relay outputs (5A)
Cable lengthNot included (user-provided)
Power input12 – 24 V (AC/DC), 50 – 60 Hz
CertificationsCE

IP54

Power input12 – 24 V (AC/DC), 50 – 60 Hz
CertificationsCE

IP67

Compatible refrigerants743-203-HFC: R22, R32, R134a, R404a, R407c, R410a, R422b, R448a, R449a, R452a, R452b, R454b, R507 (AZ50), R1234yf, and more

743-203-CO2: CO(carbon dioxide)

743-203-NH3: NH3 (ammonia)

743-203-R290: R290,R600,R441A

Alarm indicationThree alarm levels with relay outputs (5A)

Integrated siren and flashing light

Cable lengthNot included (user-provided)5m (16.5 ft.)
Compatible refrigerantsR290 (propane), R600 (isobutane), R441a
Alarm indicationThree alarm levels with relay outputs (5A)
Power input12 – 24 V (AC/DC), 50 – 60 Hz
CertificationsCE

IP56

ATEX

SKU

INF-743-203-HFC, INF-743-203-CO2, INF-743-203-NH3, INF-743-203-R290
